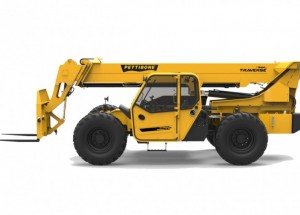

Pettibone introduced the new Traverse T1258X telehandler with a lifting capacity of 5.5 tons.

The uniqueness of the machine lies in the fact that, thanks to the boom carriage, it is the only one in the world capable of moving loads in a horizontal direction over a distance of almost 180 cm.

That is, the operator is able to safely place the load at maximum height without having to coordinate multiple boom functions.

Unlike other representatives of machines of this class, the base of the boom of the Traverse T1258X telehandler is not fixed tightly to the body, but is installed in a carriage that can move forward and backward along the guide within 180 cm.

That is, the operator has the opportunity to simply lift the load to the required height and simply push it to the right place.

This is not possible in loaders with traditional boom base mounting.

However, the actual loading height of such machines is somewhat less than the maximum lifting height, since it is necessary to take into account the removal of the forks from the load with sufficient rearward travel so that the fork tips can exit unhindered.

The new telehandler has a maximum lifting height of 18 meters, which matches the actual loading height, while the movable carriage provides a maximum horizontal reach of 14.6 meters.

The Pettibone Traverse T1258X telehandler, built on a new generation X-series platform, is equipped with a 117 hp Cummins QSF 3.8 Tier 4 Final diesel engine.

The power plant is mounted on a side rack, which provides easy access for maintenance, excellent all-round visibility and a clearance of more than 48 centimeters.

The engine is aggregated with a Dana VDT12000 Powershift gearbox, which has three speeds forward and one reverse.

The transmission and axles have been optimized for high traction at top speed.

The maximum turning radius of the Pettibone Traverse T1258X is 4.35 meters.

Thanks to molded boom plates and less welding, the new machine's four-section boom has more strength while being lighter than its predecessors. The design also minimizes boom deflection for better control and accuracy when placing loads.

As options for the Traverse T1258X telehandler, Pettibone offers a hook and sling for safer lifting, solid or foam-filled tires, and a wide range of attachments, including a 2.5 meter tower that allows you to increase the height of the machine. up to 21 meters.
